Embossing vs Debossing: Adding Dimension to Cardboard Displays

Printing isn’t the only way to add branding, text or graphics to a cardboard display.

We can also build details into the surface itself, creating anything from a subtle 2mm lift to fully three-dimensional lettering.

At The Cardboard Mill, we generally use four different levels of dimensional detailing: debossing, 2mm embossing, 10mm embossing and extruded text.

They can all achieve a similar goal — adding another layer of detail to a wall, sign, display or installation — but the finished effect can look quite different.

From most subtle to most dimensional, here’s how they compare.

Debossed

Debossing creates the appearance of a design being recessed into the surface rather than sitting on top of it.

For our cardboard builds, this is created by cutting the design out of an additional layer of cardboard that is then fixed to the wall or structure. The negative space becomes the graphic, logo or lettering.

It’s a relatively simple way of adding depth without having anything projecting from the front of the display.

When we might use debossing

Debossing works particularly well for logos, lettering and simple graphic elements where you want the detail to feel integrated into the structure itself.

It can be left as raw cardboard for a more natural material-led finish, or finished in a solid colour depending on the design.

Good for: subtle dimensional branding, recessed logos and graphic details.

2mm Embossing

Our 2mm embossing takes the graphic in the opposite direction, raising it 2mm from the main surface.

The difference is small, but that's the point.

From straight on it can still feel relatively flat and graphic, while changing light and viewing angles reveal the slight depth around the edges.

It’s a good option when you want to introduce some dimension without making the raised element a major feature of the design.

Good for: subtle raised logos, lettering and details where a small amount of depth is enough.

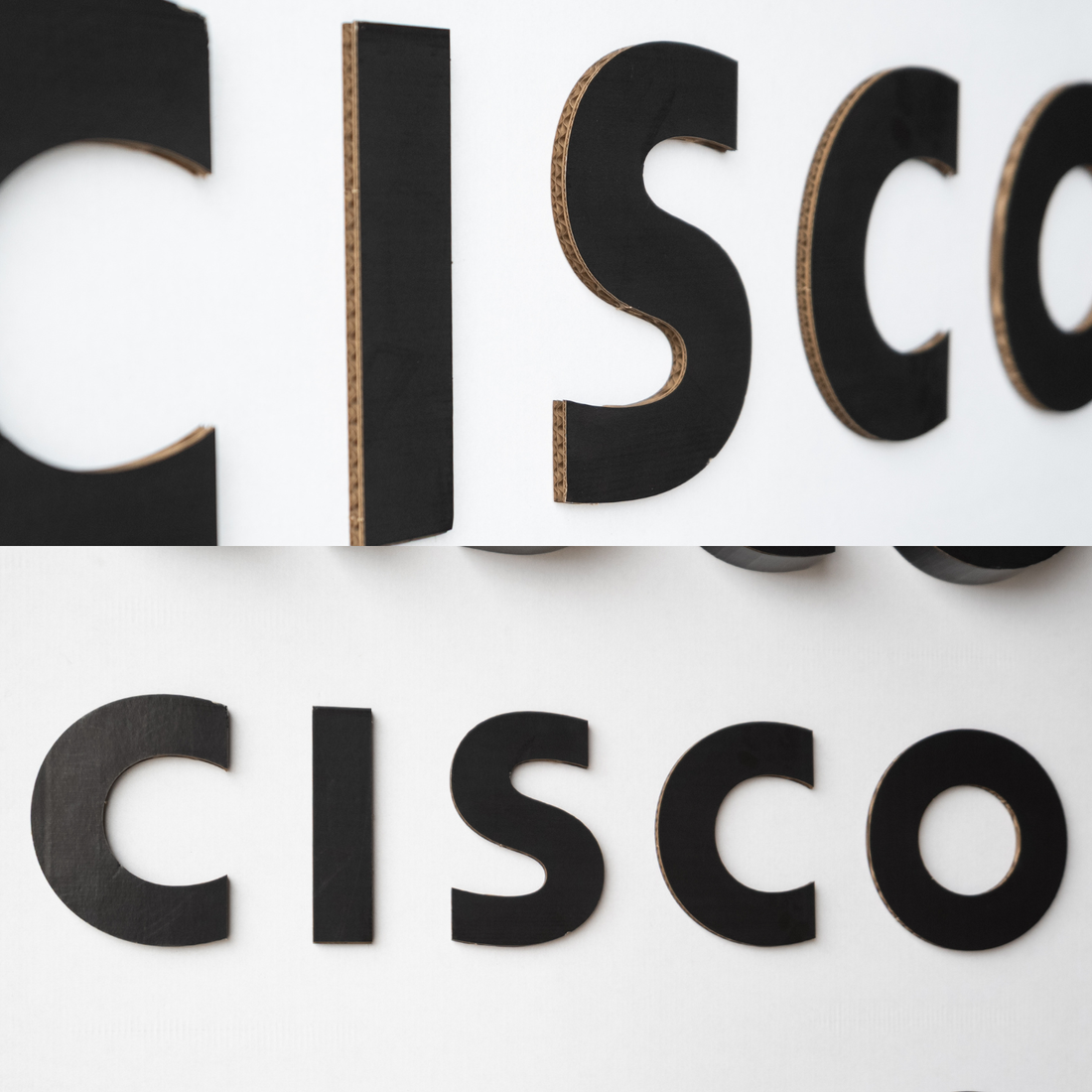

10mm Embossing

At 10mm, the embossing becomes much more noticeable.

The graphic or lettering sits 10mm forward from the main surface, creating stronger edges, shadows and separation from the background.

It still keeps the relatively simple construction of an embossed element, but creates considerably more visual impact than the 2mm version.

This can work particularly well on larger walls, signage and event displays where the design needs to read from further away.

Good for: more prominent logos, signage and graphics where you want the dimensional element to become part of the overall design.

Extruded Text

Extruded text is where we move from a raised graphic into something that feels much more like a fully three-dimensional object.

Rather than simply adding thickness to the face of the lettering, the letters themselves are constructed with depth.

This gives them significantly more presence from different viewing angles and creates much stronger shadows and dimensionality.

It is also the most complex of the four options to manufacture, so we generally use it where the three-dimensional lettering is intended to be a real feature of the installation.

Like the other options, extruded lettering can showcase the natural cardboard or be finished in a solid colour.

Good for: statement lettering, large logos and designs where the three-dimensional effect is an important part of the concept.

So, which level of embossing should you choose?

There isn't really a "best" option. It depends on how much you want the detail to stand away from the rest of the design.

A simple way to think about them is:



For something subtle, debossing or 2mm embossing may be enough.

If you want the branding to stand more noticeably away from the structure, 10mm embossing gives you much more separation.

And when the lettering itself needs to become a feature, extruded text creates the strongest three-dimensional effect.

It doesn't have to be printed

One of the things we like about these techniques is that they let the structure itself become part of the graphic design.

Dimensional details can be combined with printed surfaces, but they can also be kept simple with raw cardboard or solid colour finishes.

That means a logo doesn't always need another printed graphic applied to the front of a wall. Sometimes adding a few millimetres of depth is enough to completely change how it looks.
